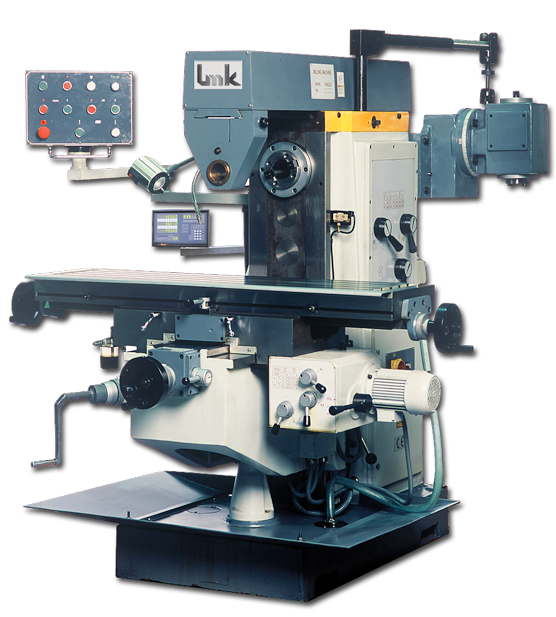

Universal Milling Machines – Basant Metal Kraft

» Universal Milling Machines

MODEL	2B	3B	4B	5B
Table
Working Surface	1300×290	1400×350	1600×360	1800×400
Swivel	45^o	45^o	45^o	45^o
T Slot Nos/Size	3/17	3/14	3/17	4/17
T-Slot centre	65	80	90	80
X-Longitudinal Travel	650	775	900	1100
Y-Cross Travel	205	255	305	450
Z-Vertical Travel	400	475	550	600
FEEDS
No. Of Feeds	18	18	18	18
Range Of Longitudinal Feed / min	13 to 410	13 to 410	13 to 410	13 to 410
Range Of Cross Feed/min	13 to 410	13 to 410	13 to 410	13 to 410
Range Of Vertical Feed/min	2.5 to 80	2.5 to 80	2.5 to 80	2.5 to 80
No. Of Rapid Feeds	1	1	1	1
Longitudinal apid Feeds/min	1100	1100	1100	1100
Corss Rapid Feeds/min	1100	1100	1100	1100
Vertical Rapid Feeds/min	175	175	175	175
SPINDLE
No. Of spindle Speeds	12	12	12	12
Range of Spindle Speeds (RPM)	40 to 1150	40 to 1150	40 to 1150	40 to 1150
Spindle Taper	ISO 40	ISO 40	ISO 40	ISO 40
Arbour Diameter	25.4	25.4	25.4	32.00
ELECTRIC
Main Motor	3 H. P.	5 H. P.	7.5 H. P.	7.5 H. P.
Feed Motor	2 H. P.	2 H. P.	3 H. P.	5 H. P.
Coolant Motor	0.1 H. P.	0.1 H. P.	0.1 H. P.	0.1 H. P.
DIMENSIONS
Overall Length	1850	2000	2100	2500
Overall Width	1600	1750	1950	2500
Overall Height	1680	1800	1880	2400
Net Weight Kg.	2600	3300	3700	4200
Gross Weight Kg.	2900	3600	4000	4600
