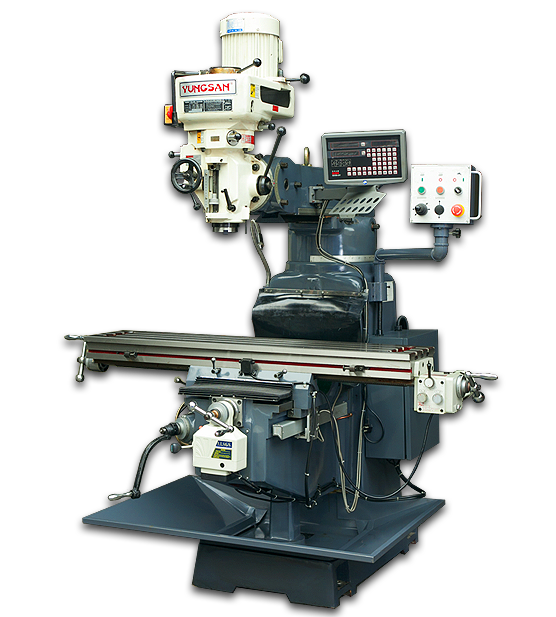

Technical Specification for Vertical Milling Machines
| MODEL | MTR-GA |
| Working surface | 1250×250 |
| Max. Table Loading Capacity | 300 kgs. |
| T-Slot Nos./Size | 3/16 |
| T-Slot Centre | 63 |
| X-Longitudinal Travel | 760 mm |
| Y-Cross travel | 400 mm |
| Z-Vertical Travel | 400 mm |
| XYZ Axis Feed | Manual |
| Spindle Taper | R8 |
| No. of Spindle Speeds | 16 |
| Range of Spindle Speeds (RPM) | 80-5440 |
| Distance from Spindle to Table | 45-450 |
| Vertical Head Tilt RXL Vertical Head Tilt FXB |
±90° ±45° |
| Manual Quill Travel | 120 mm |
| Main Motor | 3 HP |
| X Axis Feed System | Optional |
| Coolant Pump | 0.1 HP |
| Weight | 1100 kgs |
Salient Features
- Machine Body Of MEHANITE “M” Cast Iron Construction
- Induction Hardened & Ground X & Y Slide Ways
- Hardened & Ground Table Top
- Turcite B Coated on X & Y Slide Ways
- Spindle Hardened & Ground
- Pre Loaded Double Nuts ensures extremely smooth working, high precision working & minimize minimum backlash
- Built-in Coolant Tank
Standard Accessories
- 2 Axis DRO for X & Y Axis
- Control Panel
- Base Splash Guard
- 150mm Swivel Base Vice
- ISO 30 Adaptor with set of Collents
- 16mm Keyless Drill Chuck
- Micro Boring Head with Shank
- 52 Pcs Clamping kit
- Halogen Machine Lamp
- Centralised lubrication systems
- Set of Bellows
- Tool kit with Box
- Instruction Manual
