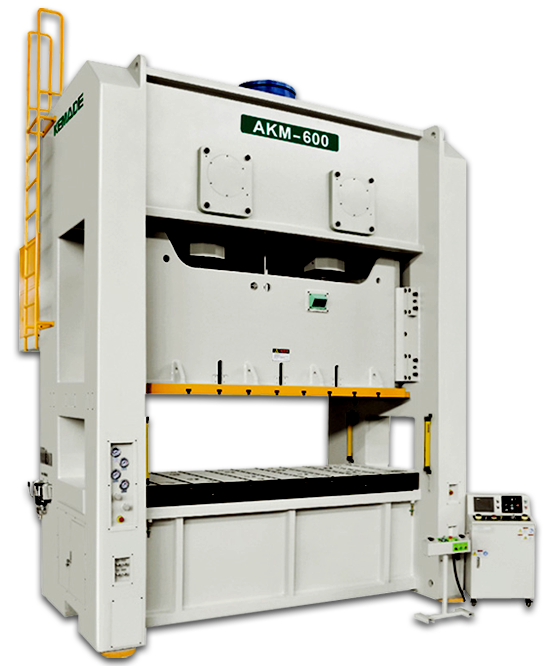

» H-Frame Power Press

Product information

  1. The fuselage adopt the process of high frequency quenching and tempering,the slider is processed by CNC boring and milling machine,The gears are processed by German gear grinding machine.
  2. The crank,gear tooth and other friction parts are made of alloy steel,annealing process.
  3. High Precision for punching,cutting,bending and blanking for steel sheet and metal parts;
  4. Delta PLC,Italy OMPI clutch & brake,Japan TACO double solenoid valve,Japan NSK bearing, oil seal,Taiwan Kingair over loading protector bump,etc.
  5. Kemade press is the high precision machine,reasonable new design, easy to operate,convenient & easy for die installation and large material processing.

Technical Specification for H-Frame Power Press (110ton-250ton)

Item/Model Unit AKM-110 AKM-160 AKM-200 AKM-250
Type S H V H V H V H
Capacity Ton 110 160 200 250
Rated Tonnage mm 5 3 6 3 6 3 7 3
Stroke mm 35-65 50-110 200 130 250 150 280 170
Speed spm 180 110 30-55 40-85 20-50 35-70 20-40 30-60
Max Die mm 400 435 450 485 500 550 550 615
Slide mm 100 100 120 120
Ram Bottom Size mm 1400*500*70 1600*650 1850*750 A 2200*900
B 2500*900
C 2800*900
D 3100*900
Bolster Size mm 1600*650*130 1800*760 2200*940 A 2500*1000
B 2800*1000
C 3100*1000
D 3400*1000
Max Up Mold Weight kg 1000 1200 1500 A 2200
B
C 2400
D
Side Opening Window mm 700*450 700*450 900*600 900*600
Motor Power KW 11 15 18.5 22
Slide Adj.Device KW 1 1 2 2
Air Pressure Kg/cm2 6 6 6 6
Press Accuracy Grade GB(JIS)1 Class
Die Cushion Capacity Ton 3.6*2 6.3*2 10*2 14*2

Technical Specification for H-Frame Power Press (300ton-600ton)

Item/Model Unit AKM-300 AKM-400 AKM-500 AKM-600
Type V H V H V H V H
Capacity Ton 300 400 500 600
Rated Tonnage mm 7 3 7 3 7 5 7 5
Stroke mm 300 170 300 170 350 170 350 170
Speed spm 20-40 30-50 20-40 30-50 20-35 30-50 20-35 30-50
Max Die mm 550 615 550 615 600 550 600 550
Slide mm 120 120 150 150
Ram Bottom Size mm A 2200*900 A 2200*1000 A 2200*1100 A 2200*1100
B 2500*900 B 2500*1000 B 2500*1100 B 2500*1100
C 2800*900 C 2800*1000 C 2800*1100 C 2800*1100
D 3100*900 D 3100*1000 D 3100*1100 D 3100*1100
Bolster Size mm A 2500*1000 A 2500*1100 A 2500*1200 A 2500*1200
B 2800*1000 B 2800*1100 B 2800*1200 B 2800*1200
C 3100*1000 C 3100*1100 C 3100*1200 C 3100*1200
D 3400*1000 D 3400*1100 D 3400*1200 D 3400*1200
Max Up Mold Weight kg A 2200 A 2400 A 3000 A 3000
B B B B
C 2400 C 3200 C 4000 C 4000
D D D D
Side Opening Window mm 900*600 1000*600 1100*650 1100*650
Motor Power KW 30 37 45 55
Slide Adj.Device KW 2 2 3.7 5
Air Pressure Kg/cm2 6 6 6 6
Press Accuracy Grade GB(JIS)1 Class
Die Cushion Capacity Ton 14*2 14*2 14*2 14*2
