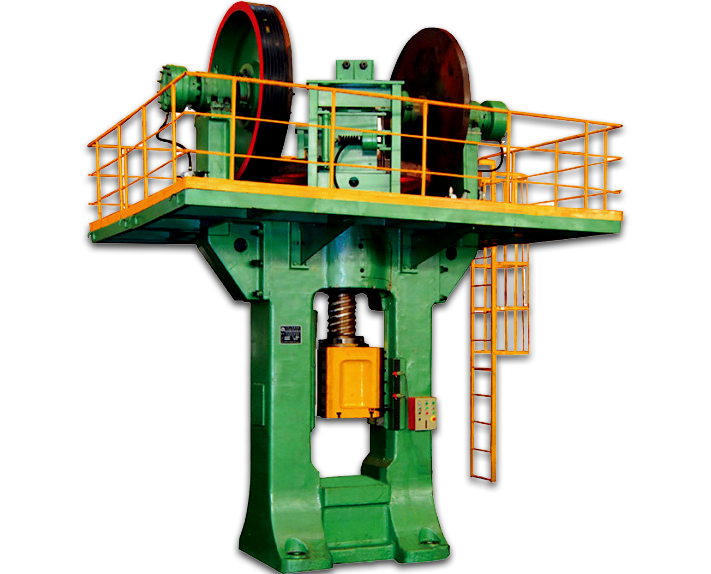

Technical Specification for Friction Screw Press (Down Stroke)

Main Parameters Unit  J93-400C J93-630D J93-1000C J93-1600C J93-2500C
Nominal Force kN 4000 6300 10000 16000 25000
Maximum Striking Force kN 8000 12500 20000 32000 50000
(Central Loading)
Ram Stroke mm 500 600 700 700 800
No. of Stroke min-1 14 11 10 10 9
Guide Strip Distance mm 650 715 1000 920 1100
Mini Die Height mm 400 500 500 550(750) 700(900)
Table Bolster Height mm 120 150 200 200 280
Lifting Method Rigid Rigid Rigid Rigid Rigid
Lifting Stroke mm 350 350 380 400 400
Ram Bottom Front/Back mm 636 760 1190 1000(1200) 1560(1900)
Dimension Left/Right mm 636 700 800 900 1060
Table Front/Back mm 820 920 1200 1250(1400) 1560(2000)
Dimension Left/Right mm 730 820 1000 1100 1200
Overall Front/Back mm 3600 4600 5700 4700 5360
Dimension Left/Right mm 3200 4660 5000 6800 7090
Height mm 5165 6060 7290 8090 9410
Main Motor Power kW 37 55 90 132 2×110
Height above the Ground mm 5065 5910 6890 7190 8210
