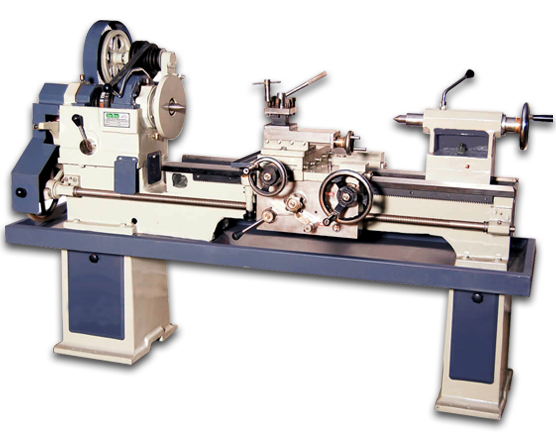

» All Geared Medium Duty Lathe Machines

Technical Specification for All Geared Medium Duty Lathe Machines

Model » AM – 215 Series AM – 250 Series
Type Of Bed Hardened Bed ways Hardened Bed ways
Swing Over Bed 423 m.m.. 490 m.m.
Height of Centre 215 m.m. 250 m.m.
Width of Bed 277 m.m 277 m.m.
Swing Over Cross Slide 250 m.m. 320 m.m.
Swing in Gap 620 m.m. 690 m.m.
Length of Gap in Front of Face Plate 125 m.m. 125 m.m.
No. of Spindle Speed 8 8
Spindle Speed Range 40 – 1200 R.P.M. 40 – 1200 R.P.M.
Taper in Spindle Sleeve MT – 5 MT – 6
Spindle Bore 38 m.m. 50 m.m.
Spindle Nose Diameter 76.20 m.m. 76.20 m.m.
Spindle Nose Threaded / A2-4 Threaded / A2-6
Spindle threads 6 T.P.I. 6 T.P.I.
No. of British Threads 44 44
Range of British Threads 2 to 60 TPI 2 to 60 TPI
No. of Metric Threads 24 24
Range of Metric Threads 0.5 to 15 m.m. 0.5 to 15 m.m.
No. of Feeds 40 40
Range of Longitudinal Feeds 0.066 to 2 m.m. / Rev. of Spindle 0.066 to 2 m.m. / Rev. of Spindle
Range of Transverse Feeds 0.0165 to 0.50 m.m. / Rev. of Spindle 0.0165 to 0.50 m.m. / Rev. of Spindle
Lead Screw Diameter / Pitch 31.75 m.m. / 4 TPI 31.75 m.m. / 4 TPI
Tail Stock Spindle Diameter 50.8 m.m. 50.8 m.m.
Taper in Tail Stock Quill MT – 3 MT – 3
Cross Slide Travel 215 m.m. 250 m.m.
Compound Slide Travel 140 m.m. 140 m.m.
Tail Stock Sleeve Travel 150 m.m. 150 m.m.
Tool Post Square 100 x 100 m.m. 100 x 100 m.m.
Tool Shank Size 19 x 19 m.m. 19 x 19 m.m.
Suitable Electrical HP 2 HP 2 HP

Salient Features

  1. Headstock spindle are made by alloy steel & precision grinding.
  2. Our ultimate goal is to win the full satisfaction of our client and we are committed to the goal.
  3. All rotating parts are balanced.
  4. Head stock is very rigid & structural standard design.day it’s ordered 99% of the time.
  5. Easy Maintenance gear box design.

Standard Accessories

  1. Hardened bed ways
  2. Chuck back plate 1 no
  3. Centre adapter
  4. Dead centres 2 nos
  5. Tool Post Spanner
  6. Motor pulley
  7. Thread dial indicator
  8. Change gear set – 1 (For metric and inch both)
  9. Norton Gear Box

Optional Accessories

  1. Face plate
  2. Carrier plate
  3. Steady rest
  4. Follow rest
  5. Taper turning attachment
  6. Motorised coolant pump with tank and fittings
  7. Rear tool post with extended cross slide
  8. Chuck back plates (Extra)
  9. Electricals with Panel and Push Button Switches
  10. Electrical (Motor / Panel board Wiring / Push button switches / v-belt fittings)
