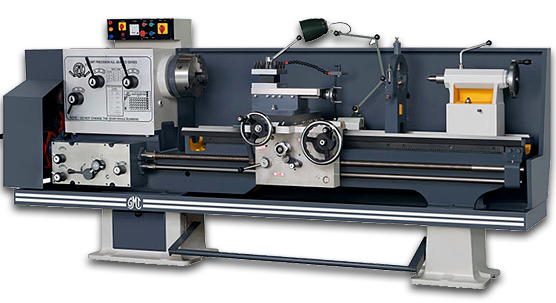

» All Geared Heavy Duty Lathe Machine

Model: 406

Technical Specification for All Geared Heavy Duty Lathe Machine

Model » AH-267 AH-304 AEH-406 AEH-508
Type Of Bed Hardened Bed ways Hardened Bed ways Flat & V Guide Ways With Gap Flat & V Guide Ways With Gap
Height of Centre 267 m.m. 304 m.m. 304 m.m. 355 m.m. 406 m.m 508 m.m.
Swing Over Bed 525 m.m. 600 m.m. 580 m.m. 680 m.m. 785 m.m. 985 m.m.
Swing Over Cross Slide 300 m.m. 375 m.m. 400 m.m. 500 m.m. 500 m.m. 675 m.m.
Swing in Gap 830 m.m. 900 m.m. 900 m.m. 1000 m.m. 1150 m.m. 1200 m.m.
Width of Bed 325 m.m. 375 m.m. 457 m.m. 558 m.m.
Length of Gap in Front of Face Plate 200 m.m. 200 m.m. 200 m.m. 250 m.m.
No. of Spindle Speed 12 12 9 9
Spindle Speeds Range 30 – 1060 R.P.M. 30 – 1060 R.P.M. 19 – 310 R.P.M. 19 – 310 R.P.M.
Taper in Spindle Sleeve MT – 6 MT – 6 MT – 6 MT – 6
Spindle Bore 50 m.m. 79 m.m. 100 m.m. 100 m.m.
Spindle Nose A2-6 Type A2-8 Type. A2 – 8 Type A2 – 8 Type
No. of British Threads 44 44 43 43
Range of British Threads 2 to 60 T.P.I. 2 to 60 T.P.I. 2 to 60 T.P.I. 2 to 60 T.P.I.
No. of Metric Threads 24 24 24 24
Range of Metric Threads 0.5 to 15 m.m. 0.5 to 15 m.m. 0.5 to 15 m.m. 0.5 to 15 m.m.
No. of Feeds 40 40 30 30
Range of Longitudinal Feeds 0.066 to 2 m.m. / Rev. of Spindle 0.066 to 2 m.m. / Rev. of Spindle 0.2 to 3 m.m. / Rev 0.2 to 3 m.m. / Rev.
Range of Transverse Feeds 0.0165 / Rev. of Spindle 0.50 m.m. / Rev. of Spindle 0.02 to 0.5 m.m. / Rev. 0.02 to 0.5 m.m. / Rev.
Lead Screw Diameter / Pitch 38 m.m. / 4 TPI. 38 m.m. / 4 TPI 44.4 m.m. / 2 TPI 44.4 m.m. / 2 TPI
Tail Stock Spindle Diameter 60.3 m.m. 60.3 m.m. 76 m.m. 76 m.m.
Taper in Tail Stock Quill MT – 4 MT – 4 MT – 5 MT – 5
Cross Slide Travel 270 m.m. 305 m.m. 400 m.m. 500 m.m.
Compound Slide Travel 145 m.m. 200 m.m. 225 m.m. 225 m.m.
Tail Stock Sleeve Travel 180 m.m. 180 m.m. 260 m.m. 260 m.m.
Tool Post Square 120 x 120 m.m. 145 x 145 m.m. 175 x 175 m.m. 200 x 200 m.m.
Tool Shank Size 25 x 25 m.m. 25 x 25 m.m. 38 x 38 m.m. 38 x 38 m.m.
Suitable Electrical HP 3 HP 5 HP 7.5 HP 10 HP

Salient Features

  1. Head stock spindle are made by alloy steel & precision grinding.
  2. Our ultimate goal is to win the full satisfaction of our client and we are committed to the goal.
  3. All rotating parts are balanced.
  4. Head stock is very rigid & structural standard design.day it’s ordered 99% of the time.
  5. Easy Maintenance gear box design.

Standard Accessories

  1. Hardened bed ways
  2. Chuck back plate 1 no
  3. Centre adapter
  4. Dead centres 2 nos
  5. Tool Post Spanner
  6. Motor pulley
  7. Thread dial indicator
  8. Change gear set – 1 (For metric and inch both)
  9. Norton Gear Box

Optional Accessories

  1. Face plate
  2. Carrier plate
  3. Steady rest
  4. Follow rest
  5. Taper turning attachment
  6. Motorised coolant pump with tank and fittings
  7. Rear tool post with extended cross slide
  8. Chuck back plates (Extra)
  9. Electricals with Panel and Push Button Switches
  10. Electrical (Motor / Panel board Wiring / Push button switches / v-belt fittings)
